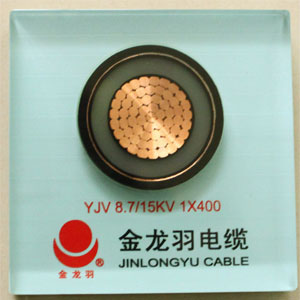

YJV8.7/15KW 1X400
YJV8.7/15KW 1X400

上一篇：额定电压0.6/1kV~ 3.6/6kV变频电缆下一篇：YJV8.7/15KW 1X500

详情说明

用途/Application：本产品适用于额定电压300/500V及以下电站、矿山、冶金、石化等部门的检测和控制用计算机系统或自动化控制装置以及一般工业计算机装置上，传输微弱模拟信号和数字信号，具有较高防静电、抗电磁干扰效果。

This product is designed for

detecting and control computer

system or automated control system

to transmit weak analogue and digital

signals at rated voltage of 300/500V

and below in power plant,mine,metallurgical

industry, petrochemistry and etc.

It features higher immunities

to static electricity and electromagnetic interference.

型号及名称/Model and Description

DJYPV(DJYJPV)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铜丝分相屏蔽计算机电缆 Copper core PE(orXLPE)insulated, PVC sheathed and copper-mesh individually screened computer cable
DJYVP(DJYJVP)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铜丝总屏蔽计算机电缆 Copper core PE(orXLPE)insulated, PVC sheathed copper-mesh collectively screened computer cable
DJYPVP(DJYJPVP)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铜丝分相和总屏蔽计算机电缆 Copper core PE(or XLPE)insulated, PVC sheathed, copper-mesh individually and collectivety screened computer cable
DJYVP2 (DJYJVP2)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铜带总屏蔽计算机电缆 Copper core PE(orXLPE)insulated, PVC sheathed and copper-tape collectivety screened computer cable
DJYP2V(DJYJP2V)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铜带分相屏蔽计算机电缆 Copper core PE(or XLPE)insulated, PVC sheathed, copper-tape individually screened computer cable
DJYP2VP2 (DJYJP2VP2)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铜带分相和总屏蔽计算机电缆 Copper core PE(or XLPE)insulated, PVC sheathed, copper-tape individually and collectivety screened computer cable
DJYVP3 (DJYJVP3)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铝塑复合膜总屏蔽计算机电缆 Copper core PE(orXLPE)insulated, PVC sheathed and aluminum-plastic -laminated film collectivety screened computer cable
DJYP3 V(DJYJP3 V)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铝塑复合膜分相屏蔽计算机电缆 Copper core PE(or XLPE)insulated, PVC sheathed, aluminum-plastic-laminated film individually screened computer cable
DJYP3 VP3 (DJYJP3 VP3)	铜芯聚乙烯（或交联聚乙烯）绝缘聚氯乙烯护套铝塑复合膜分相和总屏蔽计算机电缆 Copper core PE(or XLPE)insulated, PVC sheathed, aluminum-plastic-laminated film individually and collectivety screened computer cable

注：（Notes：）

1、如需铠装型计算机电缆加代号“22”

，如DJYVP-22。

For armoured computer cable, add “22” after

the model number, eg, DJYVP-22.

2、如需阻燃型计算机电缆加代号“ZA(ZB、

ZC)”，如ZA-DJYVP。

For flam retardant computer cable, add “ZA(ZB、

ZC)”before the model number,eg, ZA-DJYVP.

3、如需耐火型计算机电缆加代号“N”，

如N-DJYVP。

For fire-resisting computer cable, add “N” before

the model number,eg, N-DJYVP.

采用标准/Standards Applied：

本产品采用标准TICW/06-2009/GB/T 19666-2005。

The product according to the National standared TICW/06-2009 and

Chinese national standard GB/T 19666-2005.

本产品选用介电常数小得高压聚乙烯做绝缘，采用对绞、对屏、

总屏等结构形式，具有介质损耗小，

传输信号能力强、抗干扰性能好等特点。

High-presure polyethylene with low dielectric constant is

adopted as insulating compound,

and pair twisting, pair screening(pair

shield),collective screening(collective shield)structure and

the same like are adopted; as a result, this product features

superior properties such as low dielectric

loss, excellent signal transmitting capability, anti-interference property and etc.

性能特性/Properties and Characteristics:

1、低环境温度：-15℃ Minimum ambient temperature:-15℃

2、电缆安装敷设温度:不低于0℃ Installation temperature for

cable:Not less than -0℃

3、敷设时允许弯曲半径：铠装型电缆不小于电缆外径的14倍；

其他电缆不小于电缆外径的10倍 When cable is installed, permitted bendin

g radius shall be as below:Not less than 14 times of the cable
